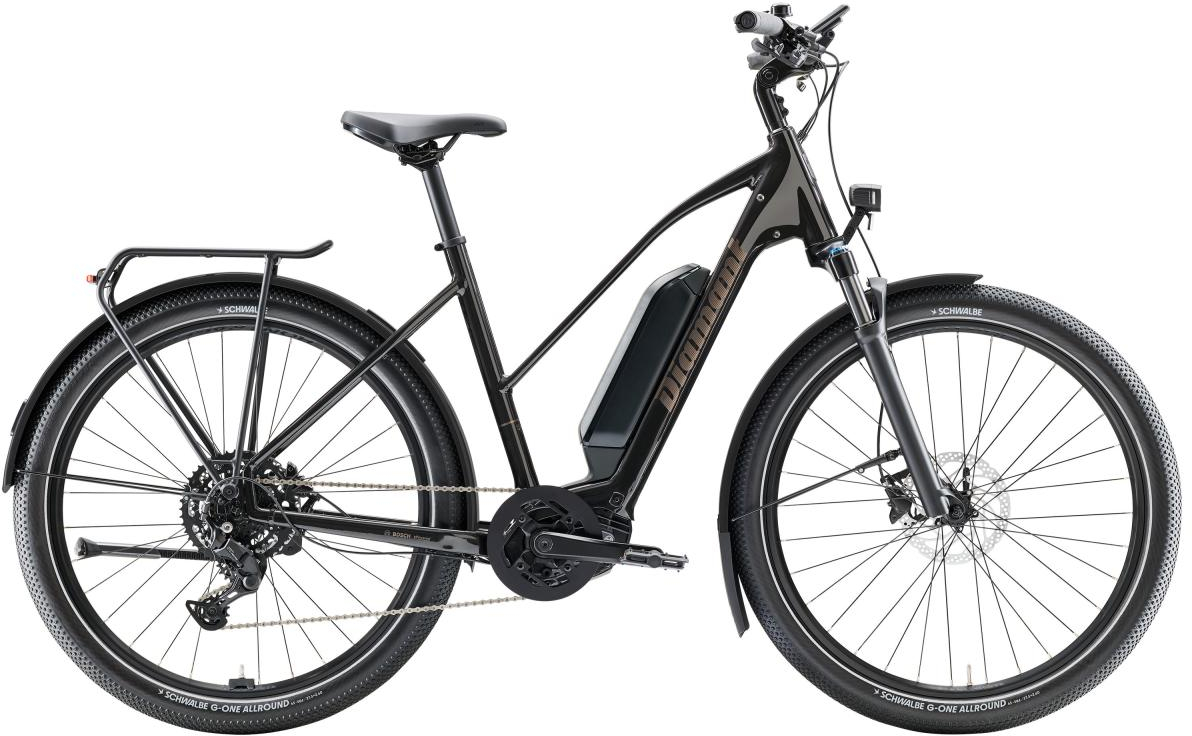

Diamant Zing Trip Core (Midstep) - 545Wh

£3,050.00

S
Part Number:

5330682

GTIN:

197216129127


The Zing Trip Core combines low weight with high performance and offers everything you need for everyday use and vacation. Thanks to the external battery, which can be easily removed for charging, storage, transport, and overnight stays, it is particularly practical. The well-thought-out equipment emphasizes the optimal price-performance ratio and is tailored to people who are interested in longer and dynamic trekking tours.

You have a substantial, yet limited budget and want to invest it primarily in performance, functionality, and reliability. You value what has already proven itself. You prefer an external battery because of its practical and financial benefits. The possibility to rely on Bosch's service network at almost any dealer also convinces you. You have a substantial, yet limited budget and want to invest it primarily in performance, functionality, and reliability. You value what has already proven it

Here it's all about power and quality for as little weight and price as possible. The 85 Nm Bosch Performance CX supports comfortably, even at low cadences. Bosch's best battery cells store a unique 205 Wh per kg - enough for up to 150 km. The extra-light frame is cleverly designed for maximum utility: quick battery mounting, easy car transport, a carry handle for stairs, and an MIK-compatible luggage rack for baskets and bags. Wider tires, new grips, and new lights give the Zing more safety and comfort than ever. Here it's all about power and quality for as little weight and price as possible. The 85 Nm Bosch Performance CX sup

The Zing Trip Core follows a clear design principle: form follows function. This is evident in the obvious as well as in the details - and this will remain the case when it needs to be maintained, upgraded, or repaired in the future. The Zing Trip Core follows a clear design principle: form follows function. This is evident in the obvious as well as in the details - and this will remain the case when it needs to be main
- Choose the Bosch PowerPack with your individual capacity - from 400 Wh for the ultimate lightweight experience to 800 Wh for incredible range. Choose the Bosch PowerPack with your individual capacity - from 400 Wh for the ultimate lightweight experience to 800 Wh for incredible range.
- Super practical: The frame made of modern aluminum is easy to carry and has a pair of mounts for water bottles on the head tube. Super practical: The frame made of modern aluminum is easy to carry and has a pair of mounts for water bottles on the hea
- The practical luggage rack with Basil's MIK system transports everything you want, stable and shock-protected. The practical luggage rack with Basil's MIK system transports everything you want, stable and shock-protected.
- The 65 mm wide tires from Schwalbe are maximally puncture-resistant and support your safety - always with their good grip and at night with the standard reflective strips. The 65 mm wide tires from Schwalbe are maximally puncture-resistant and suppor
- To better protect you from theft, the motor cover also includes a holder for your Apple AirTag. To better protect you from theft, the motor cover also includes a holder for your Apple AirTag.
- The Bosch Intuvia 100 display is reduced to the essentials, making it easy for you to keep track. The Bosch Intuvia 100 display is reduced t

Lightweight with your individual battery capacity
With the Diamant Zing, you have a choice: Different battery options minimize your weight, maximize your range, or offer you the convenience of a clever compromise. Up to ~ 2 kg less weight or ~ 50 km more range: The choice is yours.

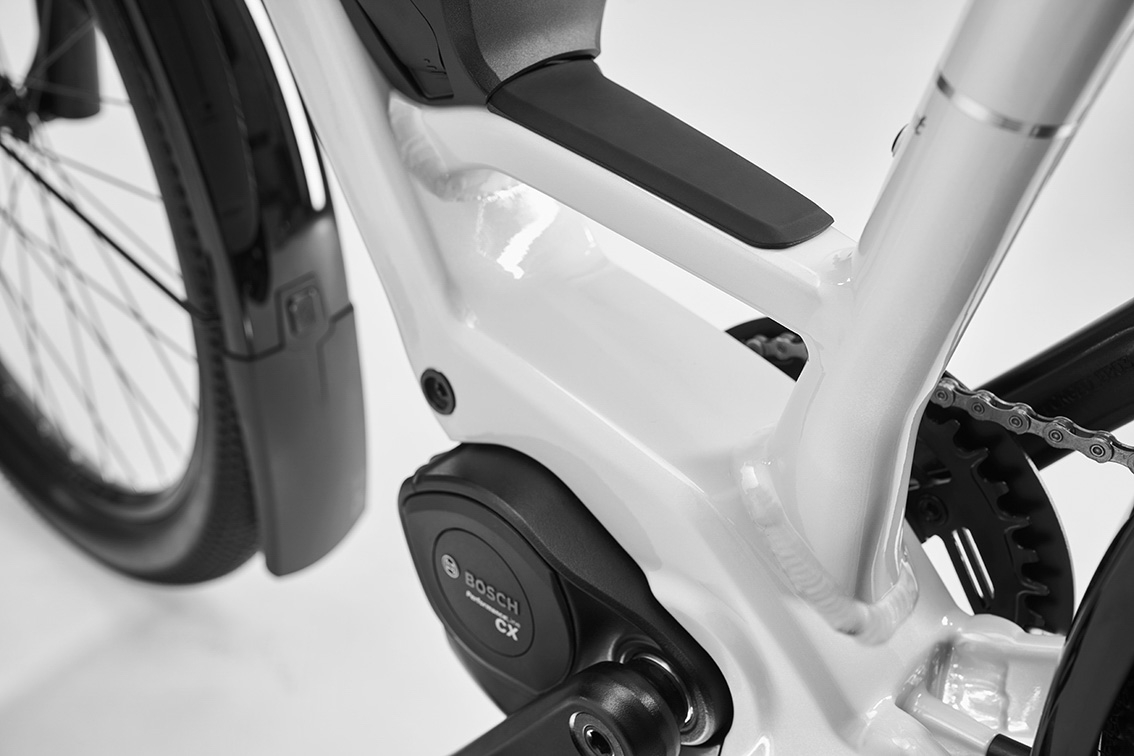

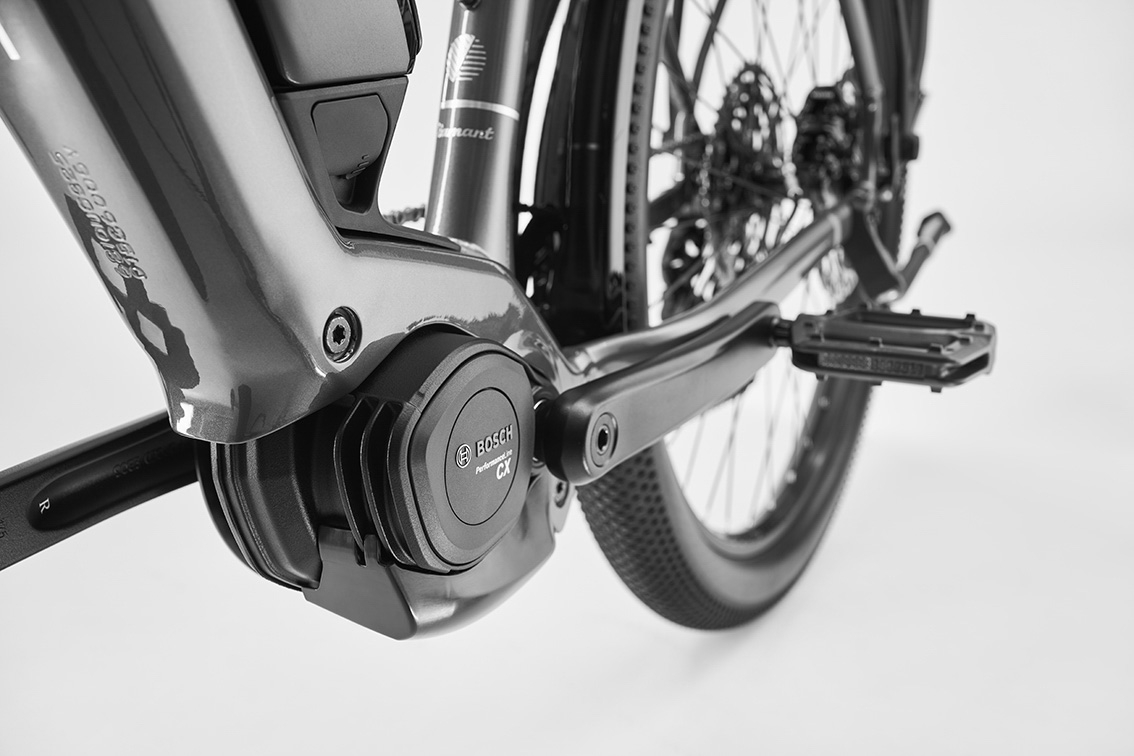

Strong motor. Full control.
"This lightweight e-bike doesn't compromise on performance: The Zing is powered by the Bosch Performance CX Gen 5 motor with up to 100 Nm of torque and 750% support. The more torque, the faster the bike accelerates and the easier it feels to ride uphill. However, higher torque reduces range and increases drivetrain wear. That's why you can use the eBike Flow app to adjust how much torque you want the motor to deliver."

Extra tire clearance
The 65 mm wide tires increase comfort by allowing lower air pressure and improve grip in corners or on slippery paths.

Shimano CUES
Whether motorized or not, your bike reaches new levels of versatility and durability with Shimano CUES. CUES always comes with Shimano's LINKGLIDE, which significantly extends the lifespan of your drivetrain components.

Bosch Intuvia with LED Remote
The new Bosch Intuvia display is your reliable digital companion, giving you quick access to key data like range and power. You operate it with your left hand via the intuitive LED remote. Control your e-bike without the display, using only the LED remote. The Bosch E-Bike Flow app gives you full customization of all your support modes.

Anti-theft measures
You can retrofit your bike with a ring lock for an affordable yet effective way to mechanically prevent quick, opportunistic theft. At purchase, get a matching lock cylinder with ABUS One Key to operate all your bike locks with a single key. You can also protect or locate your e-bike digitally. The motor cover includes space for an Apple AirTag and/or a Bosch ConnectModule.

Purchasing Options

At The Bike Cellar we offer a variety of payment methods to make your shopping experience convenient and flexible:

Online Payments

  • Securely pay via Stripe for all online orders through our website.

In-Store Payments

  • Cash, card and BACS payments are accepted in-store.
  • Flexible finance options are available to help spread the cost of your purchase. We offer finance with 0% interest over 1-2 years.
  • We participate in a range of Cycle to Work schemes, enabling you to save on a new bike while enjoying tax benefits.
  • Forces and Blue Light discount can be offered on selected in-store purchases, please get in touch for more information.

Need Assistance?

If you’d like to learn more about our payment methods, financing, or Cycle to Work schemes, don’t hesitate to contact us. Our friendly team are happy to assist!

Delivery Details

You can find comprehensive delivery information in the section below.

Delivery & Returns

At The Bike Cellar, we’re committed to making your shopping experience as seamless as possible. Below is everything you need to know about our delivery and returns policies, designed to ensure your order is handled with care and efficiency.

Please note we can only offer delivery to a mainland UK address.

Bikes

  • Free Delivery: We provide complimentary delivery on all bike orders over £1,500.
  • Delivery Fee: An £80 delivery charge applies to bike orders under £1,500. For Kid’s bikes with wheel size 20" and below the delivery charge will be £65.
  • Local Delivery: Enjoy free delivery on any bike within a 15-mile radius of our store, please select 'click and collect' option and get in touch to arrange delivery after the online purchase is completed.
  • Click & Collect: All bikes are available for free collection from The Bike Cellar. We will endeavour to set up the bike to your size/weight/preferred riding position and make sure you’re happy with the bike’s set up before leaving our store. We also offer bike fits to anyone collecting a bike from our store.

Parts & Accessories

  • Free Delivery: Orders totaling £150 or more qualify for free delivery.
  • Shipping Fee: An £8.99 charge applies to orders under £150.
  • Click & Collect: Available for all parts and accessories at no extra cost.

Estimated Delivery Times

  • Dispatch: Orders for parts and accessories are typically dispatched within two working days of payment. Accessories ordered on weekends are dispatched within two working days. Bikes will be dispatched within two to five working days.
  • Delivery Timeline: Orders usually arrive within 1-2 working days after dispatch. Bikes and larger items may take longer, with some eligible for next-day delivery.
  • Bike Orders: Once your bike order is confirmed, we’ll contact you with an estimated delivery date. Bikes are assembled and PDI'd (pre-dispatch inspection) by our trained mechanics and then repackaged before shipping. If delivered in a box, some minor assembly may be required, with instructions provided.

Availability & Delays

While we aim for accuracy with stock availability, unforeseen delays may occur. If an item is delayed or out of stock, we’ll notify you promptly and offer alternative solutions where possible.

  • Multiple Items: Orders with multiple items may arrive separately.
  • Unavailability: If an item is discontinued, we’ll contact you to discuss alternatives or a refund.

Delivery Restrictions

  • Mainland UK Only: Delivery is available for Mainland UK only. Unfortunately, we cannot ship to areas such as the Isle of Man, Channel Islands, Scottish Highlands, Shetland Islands, or Northern Ireland.
  • No International Shipping: We do not currently offer international shipping.

Delivery Partners & Signatures

We use trusted carriers, including Royal Mail and Parcelforce, based on your order’s size and destination. Deliveries require a signature. If no one is available, a slip will indicate next steps or redelivery. Please inspect packages on arrival; if damaged, mark this on the delivery note.

Missing Orders

If your order hasn’t arrived within the expected timeframe, call us at 01752 408338. We’ll provide tracking details and investigate the issue. Orders are considered lost after 15 working days from the estimated delivery date, at which point we can issue a refund or resend the order. Claims must be made within 30 working days of dispatch.

Cancelled Orders

If you wish to cancel your order then please call us on 01752 408338 and we can provide a full refund exluding the delivery charge/postage cost. The refund will be issued when the goods arrive back in store and will take 3-5 business days to arrive back into your account.

Click & Collect

Once your order is ready for collection, we’ll notify you by email. Orders must be collected within 21 business days. After this, items may be returned to stock, and refunds are not guaranteed. If you need more time, contact us to discuss your options.

Returns Policy

Returns can be handled either in person at The Bike Cellar store or sent back by post. Be sure to keep proof of postage, and we recommend using a tracked or signed-for service for added peace of mind. Ensure that items are properly packaged, accompanied by the original receipt and a completed returns form, and addressed to:

The Bike Cellar
11 Radford Park Road
Plymstock
Plymouth
PL9 9DG

We want you to be completely satisfied with your purchase. If you need to return an item:

General Returns

  • Change of Mind: Return unused items in their original packaging within 14 days for a refund or exchange (excluding food and underwear).
  • Proof of Purchase: Include a receipt or delivery note with your return.
  • Shipping Costs: Customers are responsible for return shipping costs for non-faulty items.

Faulty or Incorrect Items

  • Faulty Items: You’re entitled to a refund, repair, or replacement for faulty goods within 30 days of receipt.
  • Incorrect Items: If we’ve sent the wrong product, we’ll cover the return and redelivery costs.

Bike Returns

For bike returns, the bike needs to be returned (or arranged return) within 14 days of receiving the product. Please keep hold of the original packaging as it will need to be re-boxed in a way so that it doesn’t get damaged. Once the refund amount has been confirmed, this will be issued within 14 days of agreement. Contact us for collection arrangements:

  • Incorrect Bike: We’ll arrange and cover the cost of collecting and redelivering the correct model.
  • Change of Mind: A £100 collection fee applies if you’ve changed your mind about a bike. Bikes must be returned unused within 14 days.
  • We have the right to provide only a partial refund if you have reduced the value of the item ( for example - if the bike has signs of use or damage when returned to our store). A full refund cannot be given if the bike has been used or damaged.

Feel free to visit us at our Plymouth store or explore our products online at www.thebikecellar.co.uk. If you have any questions about deliveries or returns, don’t hesitate to get in touch by phone on 01752 408338 or via our contact form here.

Frame Size S, High-performance hydroformed alloy, internal cable routing, external battery mount
ForkSR Suntour XCR32, coil spring, preload adjuster, lockout,100 mm QR, 63 mm travel SR Suntour XCR32, coil spring, preload adjuster, lockout,100mm QR, 63mm travel
Wheel SizeFront 27.5 / Rear 27.5
WheelsBontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve Shimano Tourney HB-QC300, centerlock Shimano QC400, 32-hole, centerlock, 135x5 mm
TyresSchwalbe G-One Allround, reflective strip, wire bead, puncture protection, 65-584
ChargerBosch standard 4A, 230V, smart system
DisplayBosch Intuvia 100, smart system Bosch Intuvia 100, smar
MotorBosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC) Bosch Performance Line CX, 20 mph / 32 km/h
ShifterShimano U4000, 9-speed Shimano U4000, 9 speed
Rear DerailleurShimano CUES U4000
CrankProWheel alloy, 165mm length
CassetteShimano LINKGLIDE LG300, 11-46, 9-speed
ChainShimano LG500, 9/10/11-speed
PedalsVP-536 nylon platform
Front BrakeShimano MT200 hydraulic disc // Shimano MT200 hydraulic disc Shimano MT200 hydraulic disc // Shimano MT200 hydraulic disc Shimano RT30, CentreLock, 180 mm
Rear BrakeShimano MT200 hydraulic disc // Shimano MT200 hydraulic disc Shimano MT200 hydraulic disc // Shimano MT200 hydraulic disc Shimano RT30, CentreLock, 180 mm
HandlebarErgotec Ergo Series XXL, 31.8 mm, 30 mm rise, 16 degree sweep
GripsBontrager XR Endurance Comp, lock-on
StemBontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85 mm length
HeadsetFSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
SeatpostBontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Seatpost ClampBolt-on, 36.4 mm
SaddleSelle Royal Vivo Moderate Ergo
Front LightHerrmans H-Black MR5-E // Spanninga Pimento Large, with brake light
Weight22.2 kg
Colours BAUMWOLLWEISS METALLIC, SAMTSCHWARZ METALLIC
Sizes M, S
Brand Diamant
Model Year 2026
Barcodes 197216129127, 197216129240
SKUs / Part Numbers 5330682, 5330694

Please note: Manufacturers can sometimes change the specification of the products from time to time.
